PV Diesel Hybrid Systems – 3 Designs

From on April 25, 2014 in Category Hybrid Energy System with 13 Comments
SMA PV Diesel Hybrid

With SMA’s Fuel Save Solution for large industrial applications, PV can be easily and efficiently integrated into diesel grids. The Sunny Tripower and Sunny Central inverters convert the direct current from PV modules into alternating current and feed it into power supply systems. The SMA Fuel Save Controller manages PV feed-in and the diesel genset remains unaffected. The result: An achievement up to 60 percent of PV capacity compared to installed genset capacity.

In the following we present the three common system designs of the SMA Fuel Save Solution.

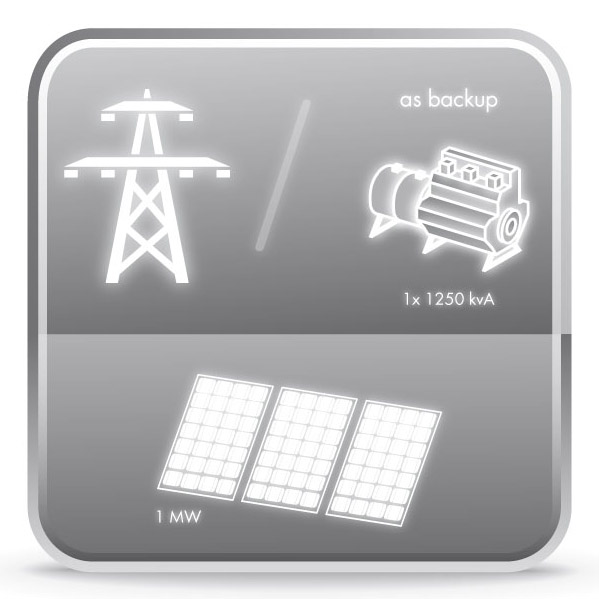

Grid or Genset1.     Grid and PV connected hybrid system including a genset backup supply: Cotton Mill, Palladam, India

Daily power outages lasting several hours are commonplace in India’s federal state Tamil Nadu. For this reason, the cotton mill Alpine Knits located in Palladam, had been using diesel gensets to ensure a reliable power supply for their production site – and simply accepted the exorbitant operation expenses resulting from the fuel consumption of the gensets. To reduce their energy bill, the cotton mill operators decided to invest in a PV diesel hybrid system with the photovoltaic system placed on the rooftop of the factory workshop. Since June 2012 the SMA Fuel Save Solution ensures reliable operation even when the grid fails. As the intelligent interface between PV system and diesel gensets, the Fuel Save Controller ensures a highly available and efficient power supply. During peak production hours, the PV system provides approximately 60 percent of the total power demand of the mill – regardless of utility grid availability.



Grid plus Genset2. Grid and PV connected hybrid system including a genset main supply: Mine, Thabazimbi, South Africa

Thabazimbi is a sparsely populated region in the South African province of Limpopo characterized by mines. The power distribution grid is far away, grid connection is limited, and transport of diesel fuel is expensive. With a high amount of solar irradiation, the region is ideally suited for the use of PV energy. Since November 2012, a PV system with a power of one megawatt has complemented the existing diesel energy main supply at a chrome ore mine. As the key component of the SMA Fuel Save Solution the SMA Fuel Save Controller manages the PV feed-in and ensures the controlling of the solar and diesel generators according to load and generation profiles.



Remote Hybrid/genset as backup 3. Remote hybrid system with a genset backup supply: Island Electrification, Vava’u, Tonga

The Tongan island chain Vava’u is now profiting from its perfect solar conditions with more than 1,500 hours of sunshine annually. A photovoltaic diesel hybrid system with the SMA Fuel Save Solution went into operation in Vava’u in November 2013 with the goal of saving diesel fuel and thereby minimizing costs and CO2 emissions. The 500 kW hybrid PV farm with 1,680 PV modules and 21 SMA Sunny Tripowers was fully integrated into the existing diesel network and provides almost 70 percent of Vava’u’s energy demands at noon.



5.00 avg. rating (98% score) - 4 votes

The Author

avatar

Stella has worked at SMA as student assistant and wrote about remote regions and special solar projects.

Tags

Related Posts

13 Comments

  • avatar

    Hussein Hassan

    August 15, 2017 at 17:57

    Dear Sir/Madam,

    We are looking for procuring 60 kW Solar PV-Diesel Hybrid Plants, please contact us to give you further information.
    Regards,
    Hussein Hassan

    Reply »
    • avatar

      Jennifer Rößler

      August 16, 2017 at 09:28

      Dear Hussein,
      please write us an e-mail at SocialMedia@SMA.de and tell us where you come from. We will then forward your request to our sales department in charge for you.
      Kind regards, Jennifer

      Reply »
  • avatar

    Peter Ejimudo

    July 8, 2017 at 14:15

    Hello
    Kindly intimate me if you would be willing to help with your FST here in Nigeria and what capacity of transaction would suit you appetite for you to come in. You may copy petinfo2002@yahoo.com with your response. Thank you.

    Reply »
    • avatar

      Christian Höhle

      July 10, 2017 at 08:19

      Dear Peter,

      technically our Fuel Save Controller can be used in the smallest installations starting with one single solar inverter (10kW). Economically, sites with more than 100kW of solar power are increasingly profitable.

      If you are interested, please have a look at this article:
      From Idea To Real Hybrid System – How To Start?

      Sunny regards,
      Christian

      Reply »
  • avatar

    Shabbi

    April 21, 2017 at 13:21

    I m a school owner and want to use your system for electricity plz inform me

    Reply »
    • avatar

      Christian Höhle

      April 23, 2017 at 22:32

      Dear Shabbi,

      great to hear about your interest in our Fuel Save Solution!
      You can use our Fuel Save Solution – Info Package as a launch point of your readings. In this link, you can find links to many articles that describe the technology as well as examples of Fuel Save Solutions in operation.

      If your plans get more concrete, please fill this questionnaire, send it to FuelSaveSolution@sma.de and we will do our best to help you plan your project.

      Sunny regards,
      Christian

      Reply »
  • avatar

    jayesh vekaria

    December 30, 2016 at 06:46

    Gooday

    We have a Fuel save controller which control power from Grid / 34 nos STP 25000 inverter and a 2 Mw gen-set.

    We want to know if we could convert the system to island

    Please do let us know if you require further information.

    Regards
    Jayesh

    Reply »
    • avatar

      Christian Höhle

      January 5, 2017 at 12:21

      Hi Jayesh,

      of course your system can operate in island mode, too. As soon as the grid is disconnected and the genset takes over, solar inverters can feed into the genset grid.

      This should work in the current system configuration. If not, please let me know so that my sunbelt colleagues who configured the plant can have a look at it.

      Sunny regards,
      Christian

      Reply »
  • avatar

    Paul Benton

    January 15, 2015 at 19:47

    Hello,
    Like the Tongan island, we have 1792 panels and 23 sunny tripower inverters running with diesel generation. How can I get information on the fuel save controller?
    Thanks,
    paul

    Reply »
    • avatar

      Leonie Blume

      January 19, 2015 at 11:32

      Hey Paul,

      Wow, that’s a lot. Here you can find more information: http://www.sma.de/en/products/monitoring-control/sma-fuel-save-controller.html
      Shall I ask a colleague to get back to you via email? Which country are you from?

      Best regards
      Leonie

      Reply »
    • avatar

      Christian Höhle

      January 5, 2017 at 12:53

      Hi Paul,

      in the mean time, a lot of information concerning our Fuel Save Solution is packed together in this article so that you can conveniently find answers: Fuel Save Solution – Info Package.

      Sunny regards,
      Christian

      Reply »
      • avatar

        Joseph Ajayi

        February 22, 2017 at 23:56

        Hi Christian,
        I browsed through your website and developed interest in your Fuel Save Solution, especially on the PV Diesel –Hybrid system. With this in mind, I would appreciate it if you would kindly confirm a convenient time to discuss with you on your business lines(+4956195223199 or any other line you have) in order to know the way forward.

        Anticipating your response.

        Best Regards

        Joseph Ajayi

      • avatar

        Christian Höhle

        May 30, 2017 at 08:06

        Dear Joseph,

        I am so sorry for the delay. Your post went into the Spam folder and was recovered from there just today.

        Here you find a questionnaire: Link
        Please fill this questionnaire and send it to FuelSaveSolution@sma.de.

        With this data, we are able to understand your application and we can set up a call with the persons that can help you best in proceeding towards your own solar-diesel-hybrid system.

        Sunny regards,
        Christian
